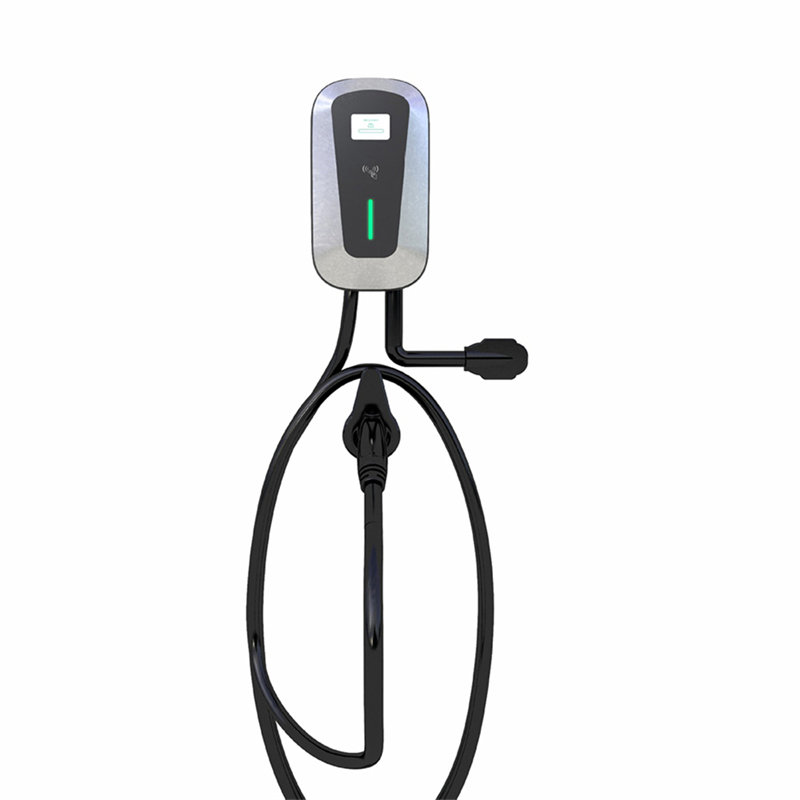

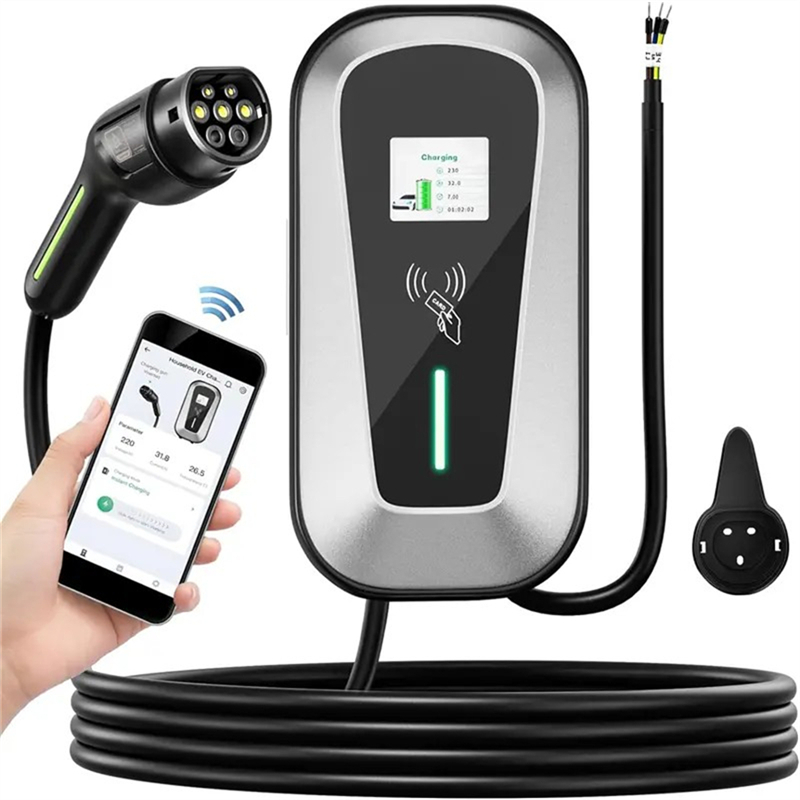

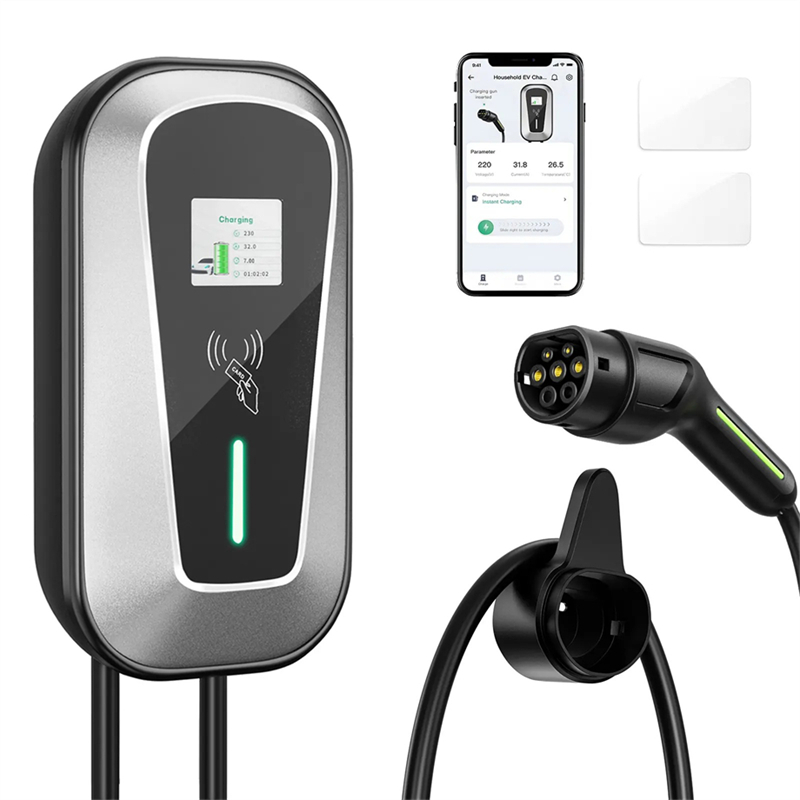

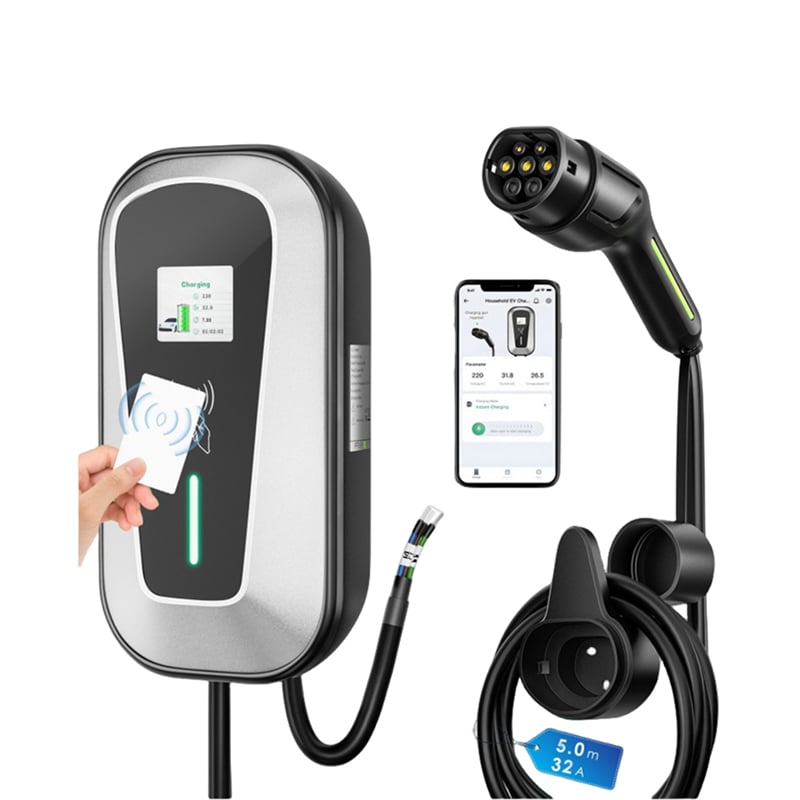

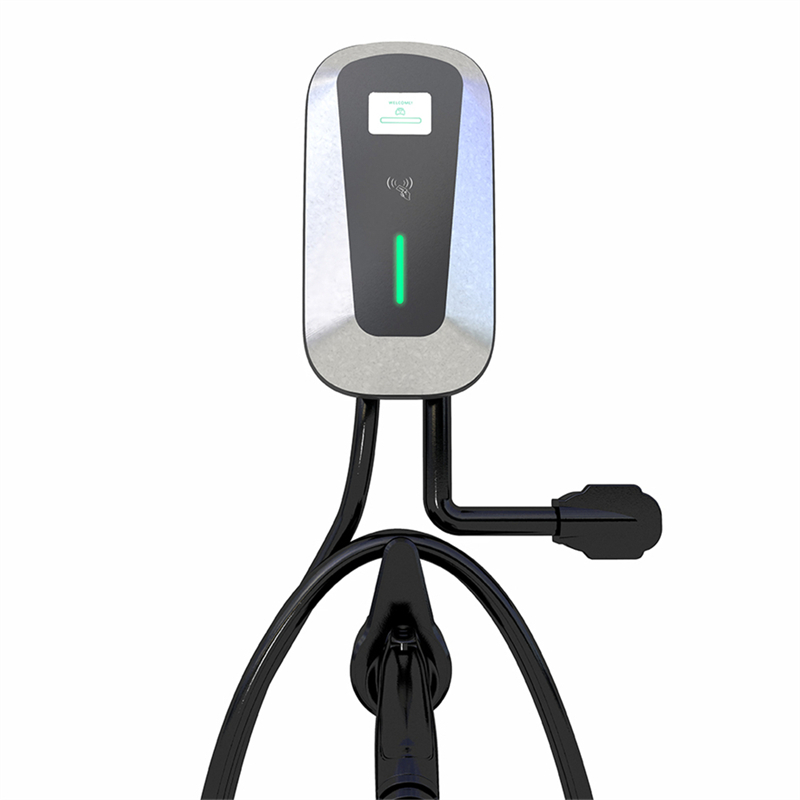

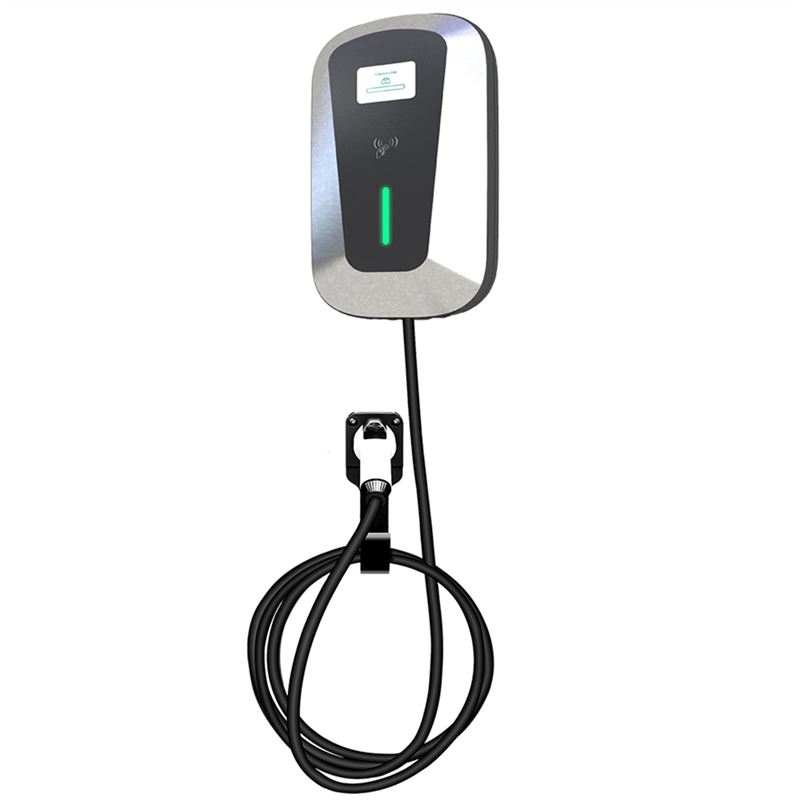

32A 40A 48A EV Charger J1772 Type1 EV Wallbox EV Charging Station with Type 2 Plug
Short Description
EV Charging Stations Features
Innovative design:
AC EV charger is an artwork designed to improve the charging experience with the breakthrough of the traditional appearance.
LED description:
The LED light shows charging status by color changes and it adopts breathing light to avoid direct glare at human eyes.
Easy to use:
User friendly design, easy for installation, maintenance and use.
Compatible with every EV:
Uses J1772/Type 2 connector that can charge any EVs on the market.
- Description
Specifications:
| Input | |
| Power Supply | 1P+N+PE |
| Input Rated Voltage | 230Vac±15% |
| Input Rated Current | 32A |
| Input Frequency | 50/60Hz |
| Output | |
| Output Rated Power | 7kW |
| Output Voltage | 230Vac±15% |
| Max Current | 32A |
| User Interface | |
| Charging Connector | Type 2（Type 1 / GBT optional) |
| Charging Cable Length | 5m |
| Housing Material | PC and ABS |
| Display | 4.3" screen |
| Status Indication | LED strip |
| Start Mode | RFID card / APP control |
| Emergency Stop | Yes |
| Communication | |
| Network Interface | Bluetooth / Wi-Fi(optional) |
| Protocol (EVSE&EV) | Control pilot |
| Environmental | |
| Operating Temperature | -30℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Humidity | 5% to 95% no condensation |
| Altitude | ≤2000m above sea level |
| Mechanical | |
| Cooling | Natural cooling |
| Dimensions (W×H×D) | 310×161×83 mm |
| Installation | Wall-mounted |
| Safety | |
| Ingress Protecion | IP55 |
| Impact Protection | IK10 |
| Protection | Over / Residual Current , Over / Under Voltage, Over / Low Temperature, Integrated surge protection, etc. |
| Certification | CE, TUV |
