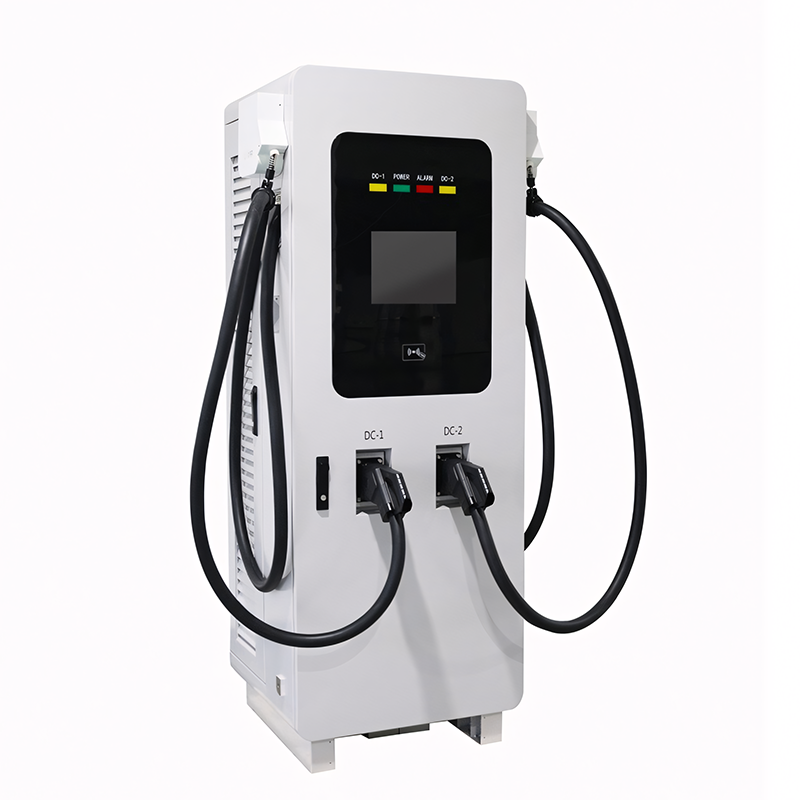

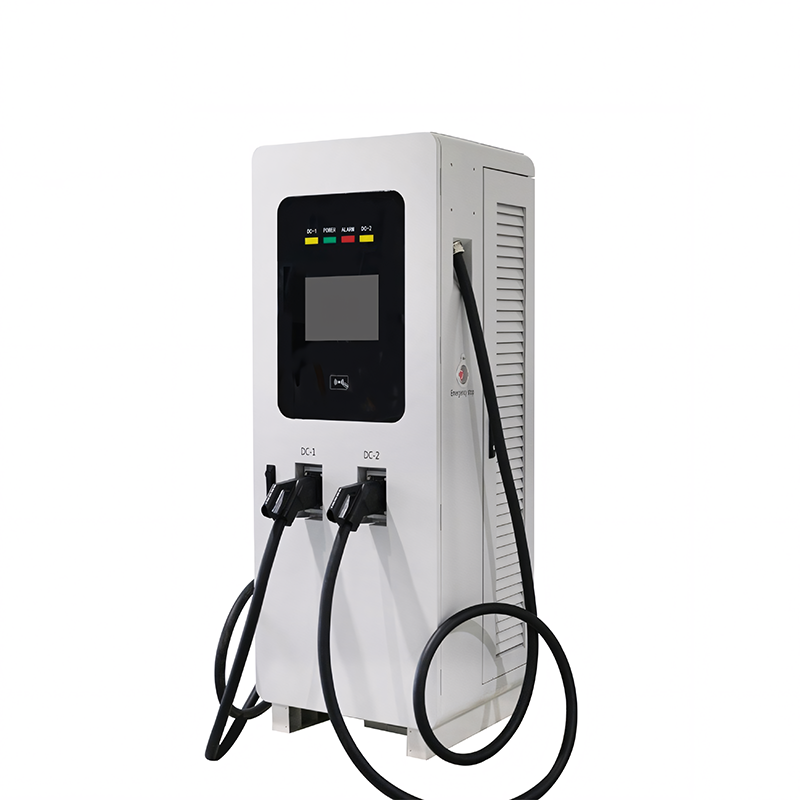

180kW 240kW DC Charging Station with OCPP1.6 For Commercial Business Operation
●Power: 60kW 80kW 100kW 120kW 160kW 180kW 240kW
●Smart charging supports dynamic load balancing
●Input Voltage:400V±15%
●Input Voltage Type: 3 Phase 5 Wires(L1,L2,L3,N,PE)
●Output Voltage:150Vdc-1000Vdc
●Max output current for a single plug: DC 200A
●Connector options: 2*CCS1 / 2*CCS2 / 2*GBT / 1*CCS+1*CHAdeMO / 1*CCS+1*GBT
●Application: Highway Service Areas / Urban Public Charging Stations / Parking Lots / Residential Communities
Specifications
| Input | |
| Power Supply | 5 Wires (L1, L2, L3+N+PE) |
| Input Voltage | 260Vac ~ 485Vac |
| Input Frequency | 55Hz±10% |
| Output | |
| Output Rated Power | 240kW |
| Output current for single plug | DC 200A |
| User Interface | |

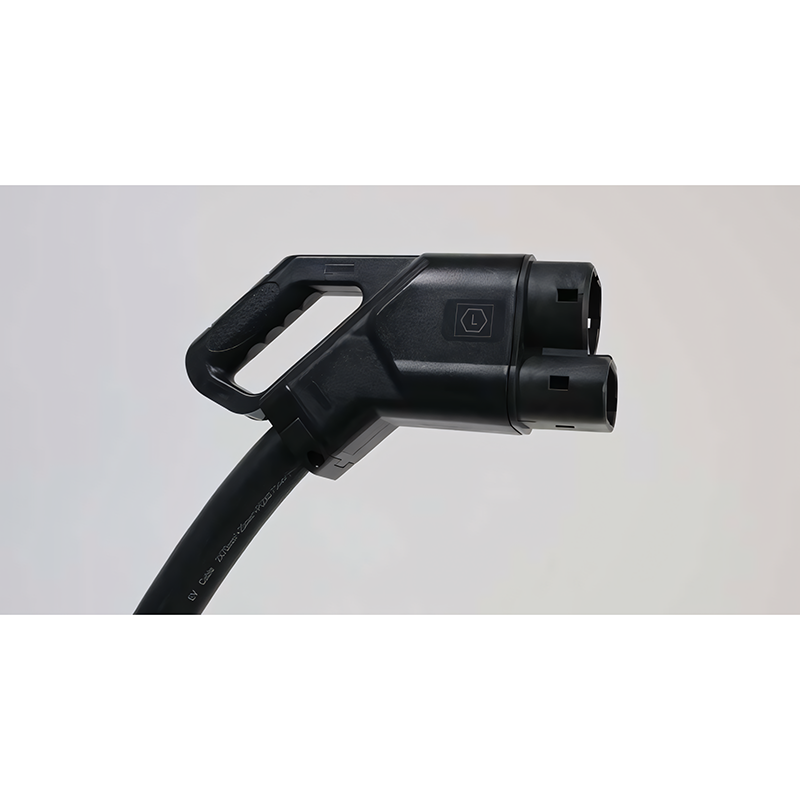

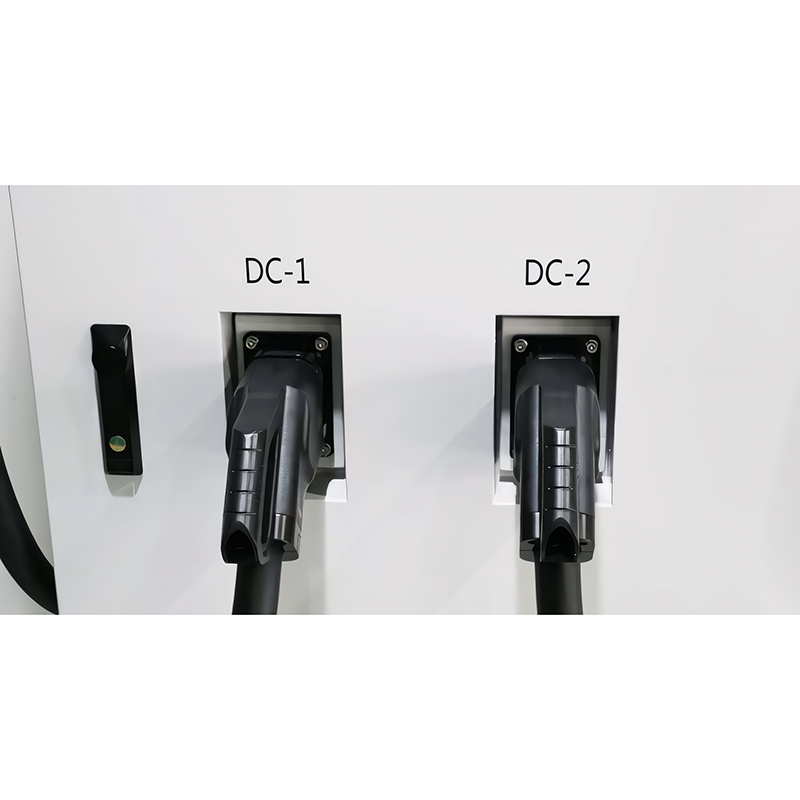

| Charging Connector | 2*CCS1 / 2*CCS2 / 2*GBT / 1*CCS+1*CHAdeMO / 1*CCS+1*GBT |
| Charging Cable Length | 5m or 7m |
| Housing Material | Metal |

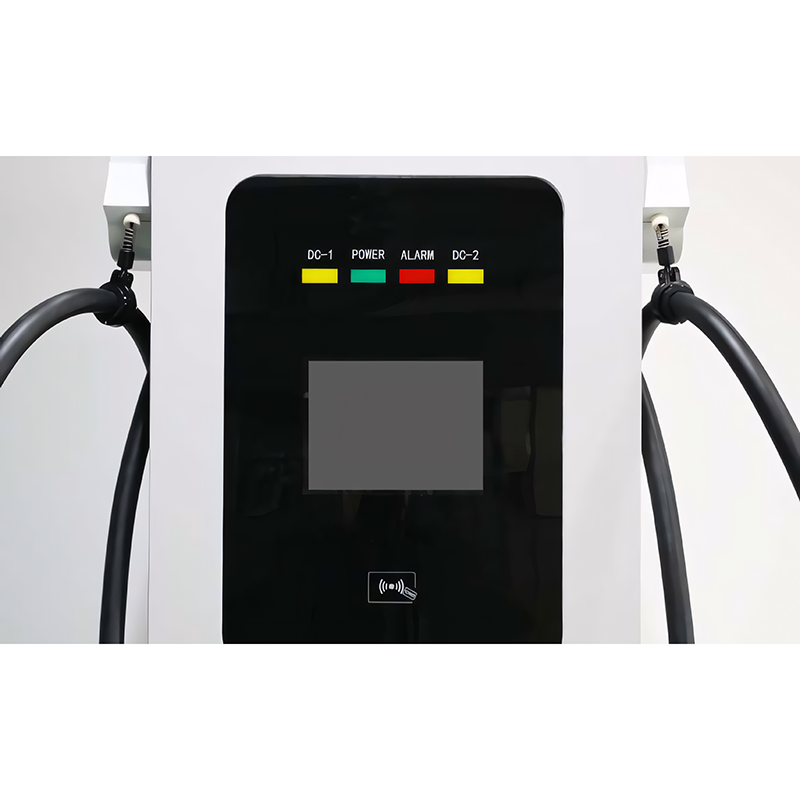

| Display | 8″ LCD touch screen |
| Status Indication | LED indicator |
| Start Mode | RFID card / APP / POS |
| Emergency Stop | Yes |
| Communication | |
| Network Interface | 4G, Ethernet, Wi-Fi(optional) |
| Protocol (EVSE&Backend) | OCPP 1.6J / OCPP 2.0 |
| Environmental | |
| Operating Temperature | -30℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Humidity | 5% to 95% no condensation |
| Altitude | ≤2000m above sea level |
| Mechanical | |
| Cooling Method | Air-forced |
| Dimensions (W×H×D) | 700×1900×650 mm |
| Installation | Floor-mounted |
| Safety | |
| Ingress Protecion | IP54 |
| Protection | Over / Residual Current , Over / Under Voltage, Over / Low Temperature, Integrated surge protection, etc. |
| Certification | TUV / CE / IEC61851-1 / IEC61851-23 / IEC61851-21-2 |
